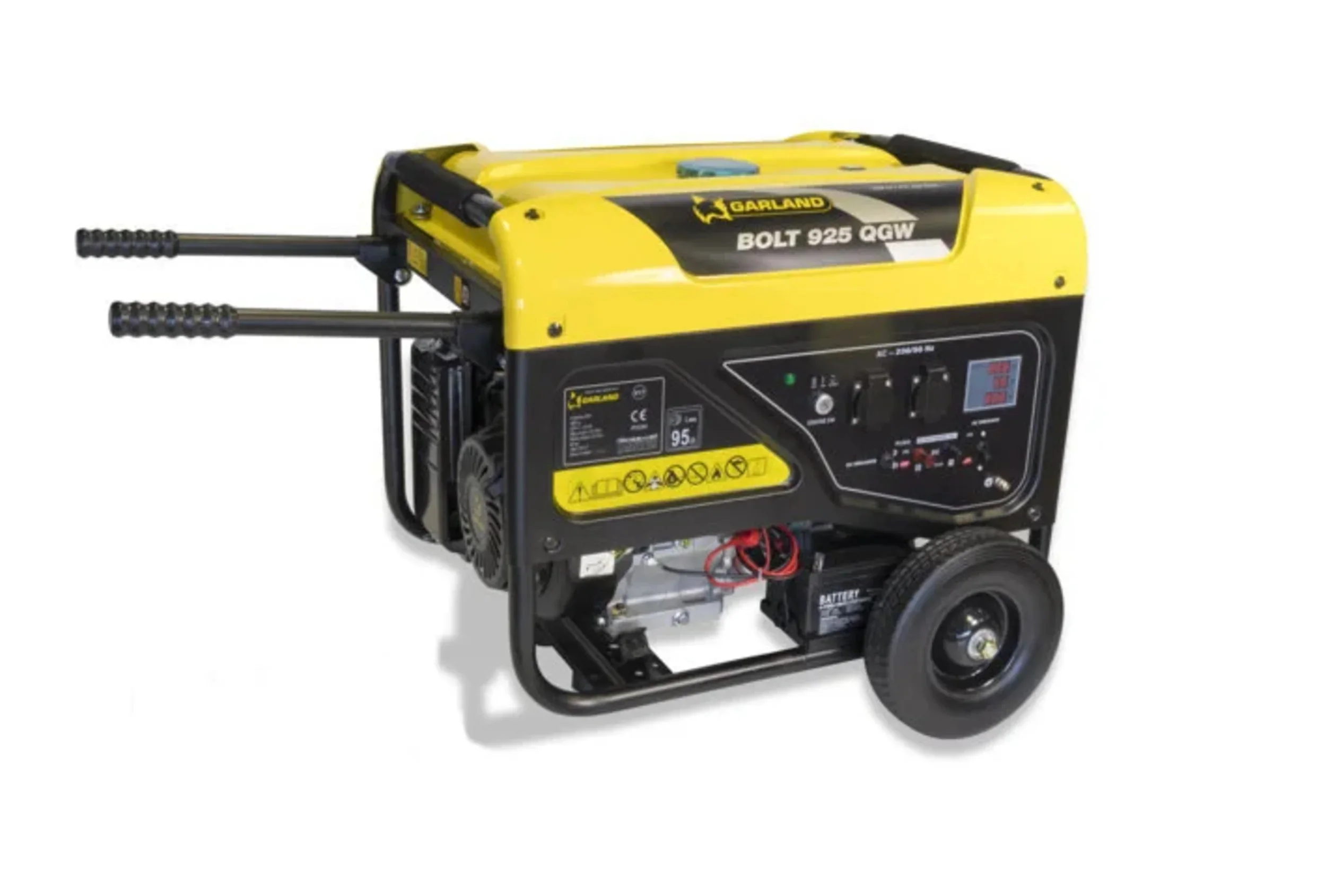

Generator with a 4-stroke engine and automatic voltage regulation (AVR). Electric start with ignition key.
Electronic display with information on voltage, frequency and hours of use.
Two standard CEE7/4 Schuko AC “Type F” sockets with covers. 12V-8A DC output with battery charging capability.
Perimeter steel chassis with retractable handles and transport wheels.
Engine Type.Garland 4 T OHV
Cylinder capacity (cc)389
EURO standardEuro V
Electronic ignition (Yes/No)Si
Start (Manual/Electric)Eléctrico
IP protectionIP23M
Power (kW)9,3
Idle min-11800
Maximum engine revolutions min-13800
Torque (Nm)28,5
Consumption (kg/kWh)0,386
Autonomy (min)330,1
P. max output (kVa)5,5
Nominal output (kVa)5
Number of current outputs2 AC/ 1 DC
Alternating output voltage (V)230
Continuous output voltage (V)12
Alternating output frequency (Hz)50
Output amperage20,8
Sound power (dB (A)) (guaranteed/measured)97
Fuel dep. vol. (l)25
Length in use (cm)67
Width in use (cm)70
Height in use (cm)53
Packaging weight (kg)84
Packaging length (cm)54
Packaging width (cm)56
High packaging (cm)83
ManualView file
Ficha técnicaView file

MAQUINAS RELACIONADAS

FAQS

What type of use is the Garland Bolt 925 QGW-V17 intended for?
It is a generator from the Garland family, suitable for supplying electricity in areas without a grid or as support in construction sites, gardens and events. To know the exact power, runtime and type of outputs, it is advisable to review the product manual linked in the sheet.
Where can I consult the specific technical specifications of the Bolt 925 QGW-V17?
The official Garland manual is linked to the product page itself, where the engine, tank, electrical outputs and construction characteristics appear. It is the reference document to verify any value before purchase.
What basic maintenance does a generator like this require?
Like any generator set, it is advisable to periodically check the level and quality of the oil, air filter, spark plug and condition of the fuel tank. The exact guidelines and recommended intervals are detailed in the user manual available in the tab documentation.
What safety precautions should be taken when using it?
It should always be used outdoors or in well-ventilated areas, away from flammable materials and on a stable surface. Before starting for the first time, it is advisable to read the safety warnings in the official Bolt 925 QGW-V17 manual.
Can I connect several devices to the generator at the same time?
Yes, as long as the sum of powers does not exceed the nominal capacity of the generator and the available outlet types are respected. To calculate the real load, it is advisable to check the manual for continuous power, starting power and the outputs it incorporates.
Where do you get parts and support for this Garland generator?
Spare parts and technical service are channeled through the official Garland network and the distributor where the machine is purchased. The reference 53-0020 and the Bolt 925 QGW-V17 model are the key data to request exploded views or specific parts.
