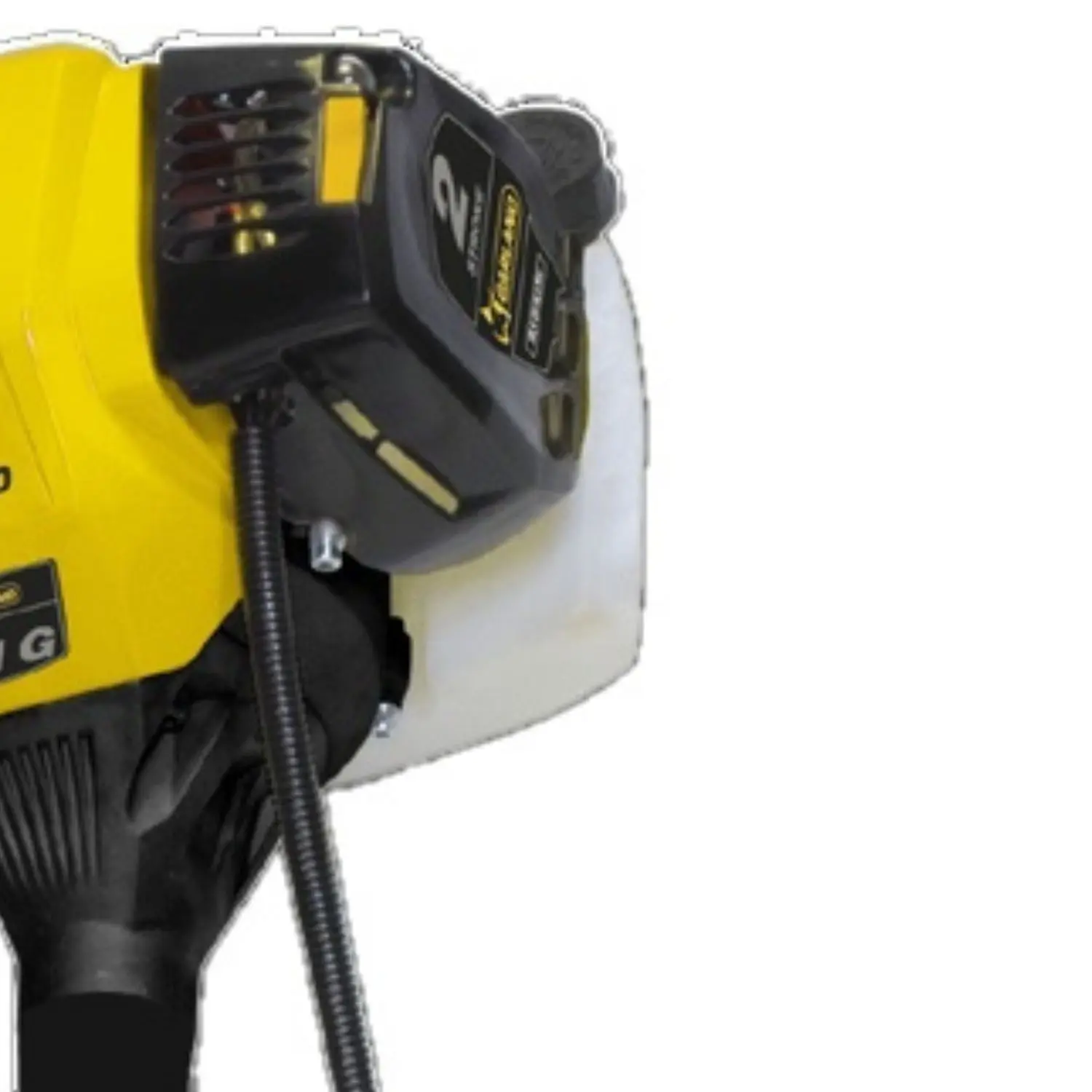

Brokeer with 4 T motor of 38.9 cc, 1.4 hp and high torque, without using oil mixture, more environmental respectful and with less emission of noise and vibrations, extends the hours of use reducing tiredness .
Its engine has double segment pistons, of greater compression, which gives it greater efficiency, as well as complete crankshaft with double support that reduces vibrations.

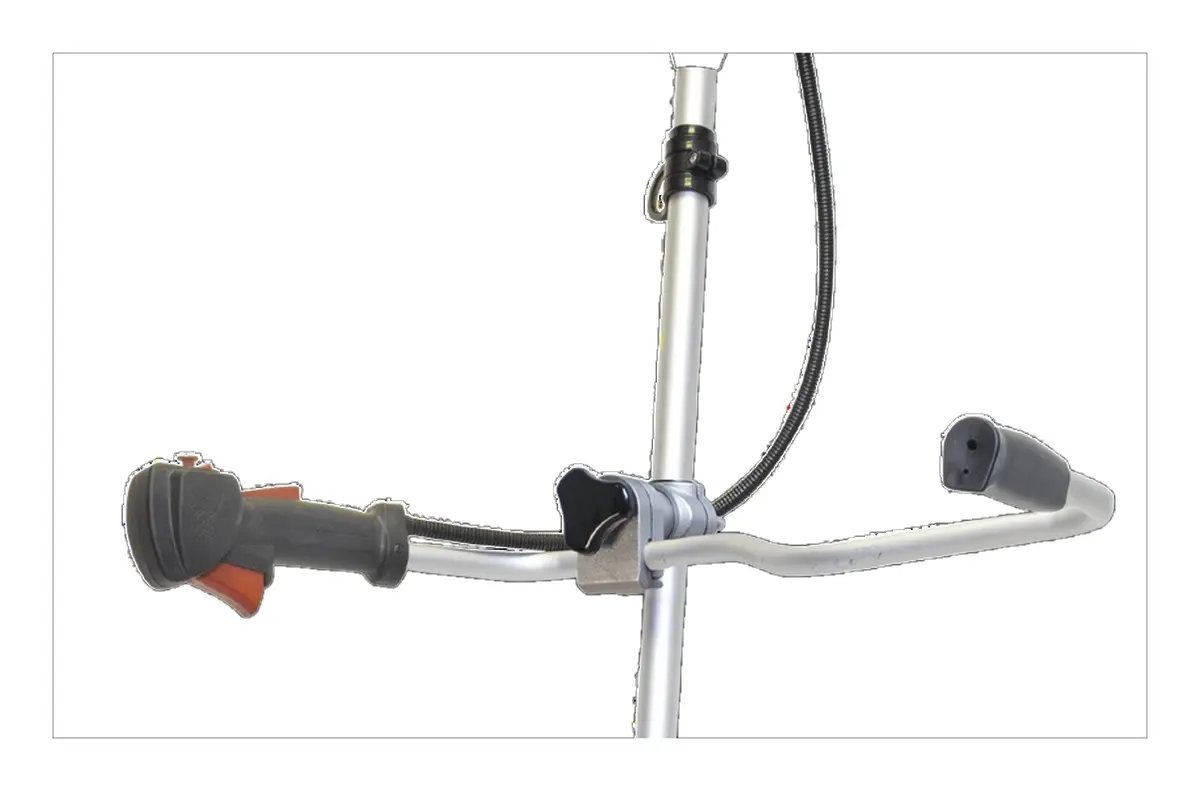

Double 19 mm folding handlebar to facilitate transport. With the independent regulation of inclination and turn, you do not lose your personal adjustments by folding the handlebar to save the machine.

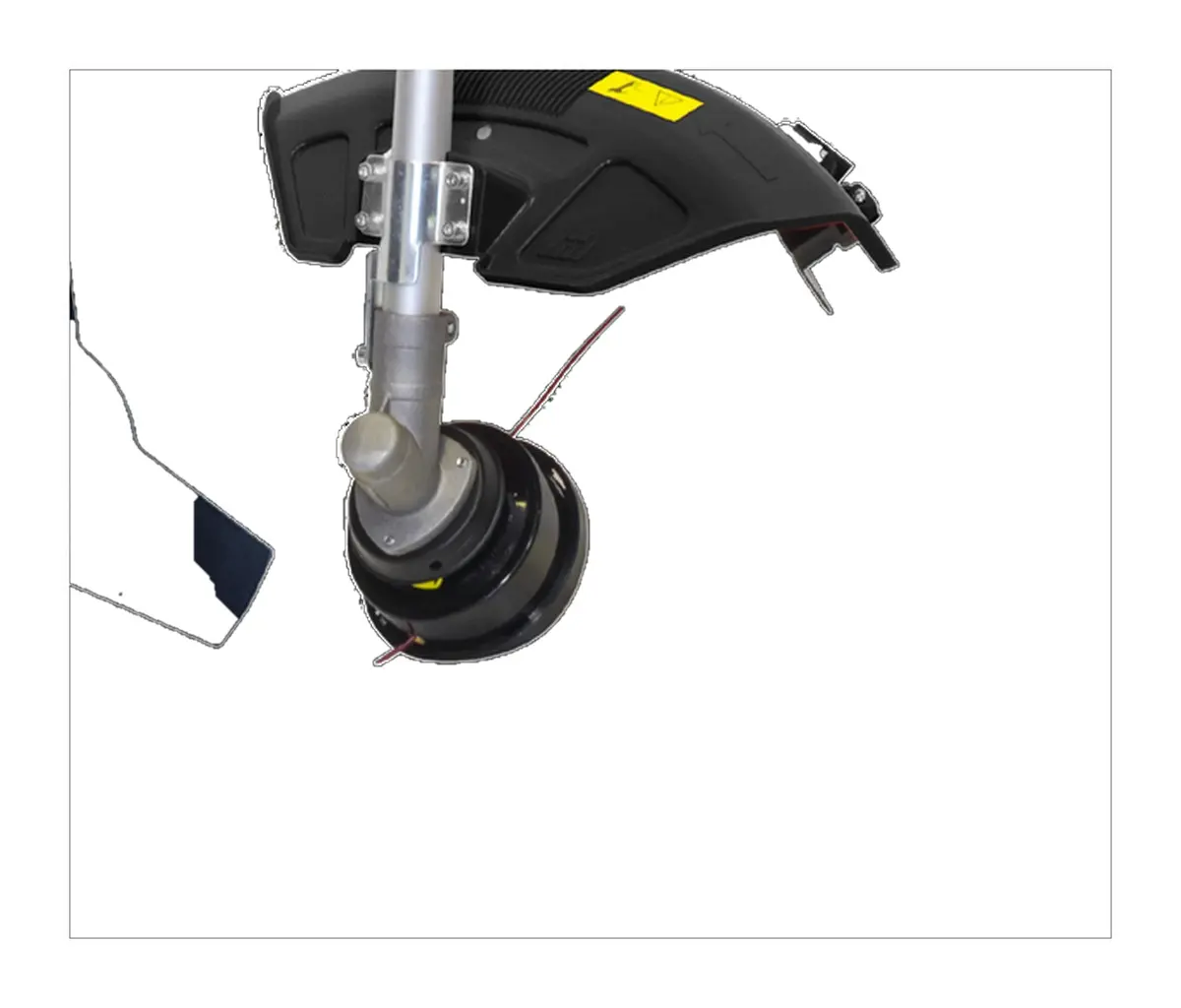

It has a removable tap & go head without tools and with optimized design for rapid wire assembly.

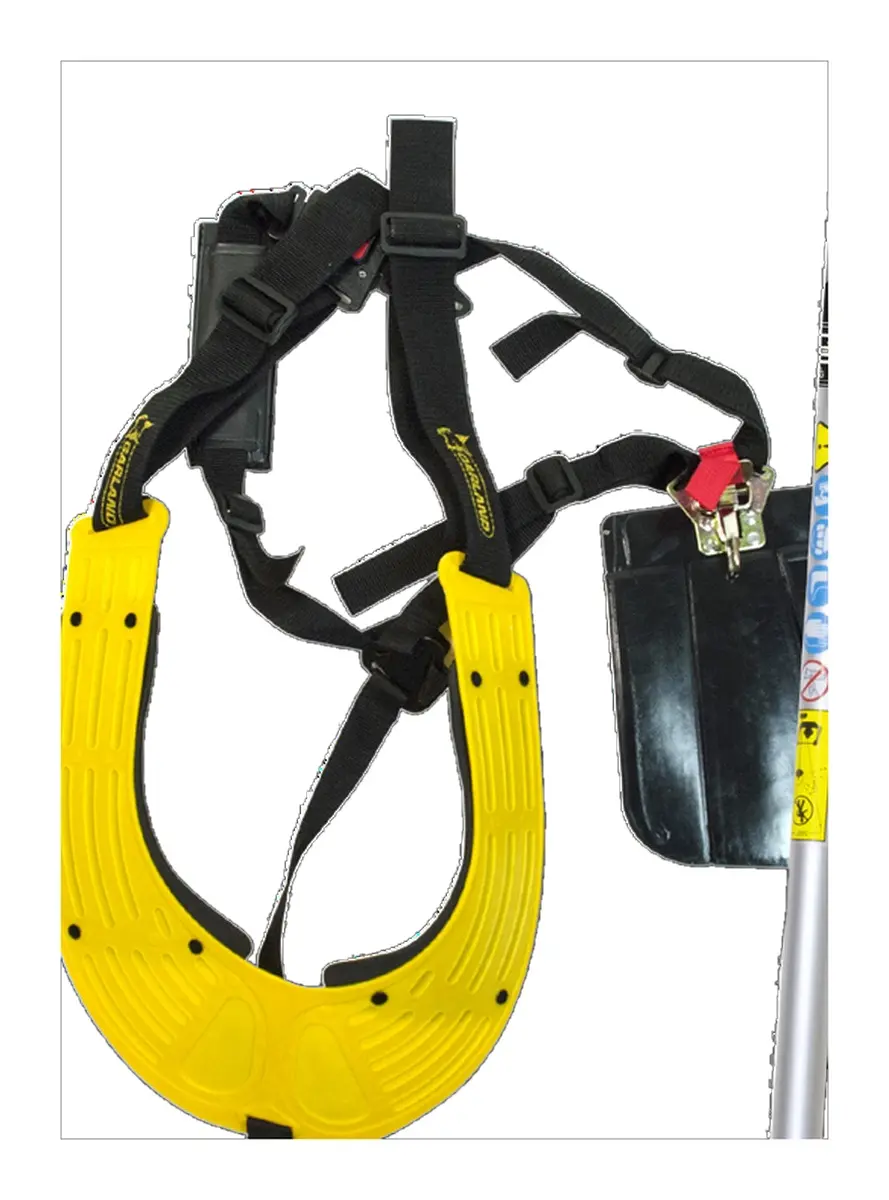

Includes double harness, for a better distribution of weight, with security disconnection system.
Autonomy (min)61
Clutch rpm (min-1)3950
Consumption (kg/kWh)0,555
Cte. uncertainty vibrations k (ms-2)1,5
Cylinder capacity (cc)38,9
EURO standardEuro V
Electronic ignition (Yes/No)Si
Empty machine weight (kg)7,9
Engine Type.Garland 4 T
Folding handlebar without tools (Yes/No)Si
Fuel dep. vol. (l)0,9
Fuel type (s/p 95 + oil 2%)Gasolina 95 + aceite 2%
Gear ratio16/19
Handlebar tube diameter (mm)22
Handlebar tube thickness (mm)1,2
Handlebar type.Doble/Plegable
Height in use (cm)45,5
High packaging (cm)26
Idle min-13000
Length in use (cm)182
Max. rpm force/transmission (min-1)10947,368
Maximum engine revolutions min-110000
Packaging length (cm)27
Packaging weight (kg)8,9
Packaging width (cm)184
Power (hp)1,4
Power (kW)1
Sound power (dB (A)) (guaranteed/measured)117
Sound pressure (dB (A))97
Split Transmission (Yes/No)No
Start (Manual/Electric)Manual
Thread head typeSemiautomático
Trans. tube diameter (mm)28
Transm tube thickness (mm)1,5
Transmission (rigid/flexible/belt/direct)Rígida
Uncertainty constant k (dB(A))3
Vibration level (medium)13,5
Width in use (cm)38
Width with disc (mm)255
Width with thread (mm)420
